Jayco Melbourne Motor Home Class C - Diesel RVs For Sale
Sometimes the best things in life come in smaller packages, like the Melbourne Class C diesel motorhome by Jayco! You will love how easy it will be to maneuver through the town or country, and there are many residential features to make you feel right at home.
Inside, you'll find decorative kitchen backsplash, LED-lit pressed countertops, hardwood cabinet doors and drawers, plus many more comforts. The Customer Value Package features a backup and side-view camera, swivel captain's seats, and a Sony infotainment center with Apple CarPlay and Android Auto to make the driver's job that much easier. The exterior includes many convenient features to make each trip hassle-free, like the exterior utility center, the outside shower, and the electric stabilizer jacks to name a few.
The open road is yours in a Melbourne Class C diesel motorhome by Jayco. Choose your favorite floorplan today!
-
Melbourne 24L
Jayco Melbourne Class C diesel motorhome 24L highlights: 14' Power Awning with ... more about Melbourne 24L
Have a question about this floorplan? Contact Us
Specifications

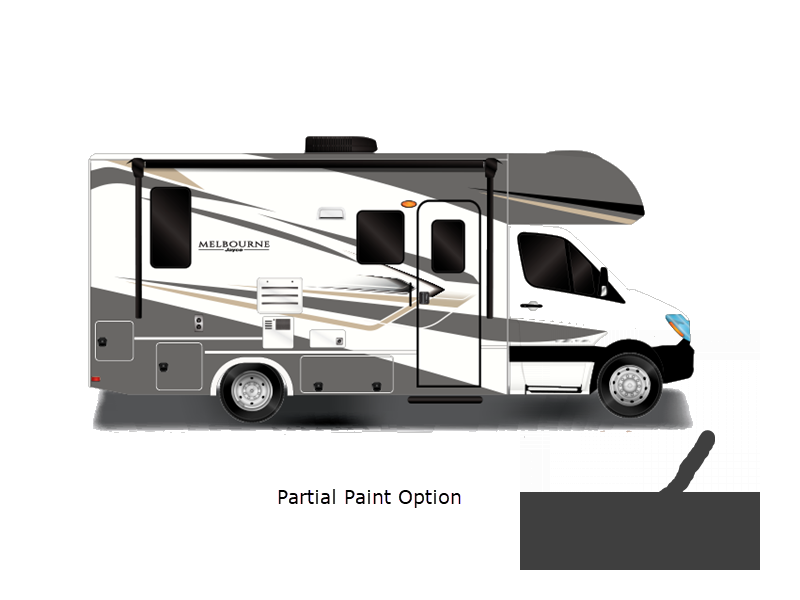

Sleeps 5 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Dover Exterior Color Standard Graphics, Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 43 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-watt LP Fuel Type Diesel Engine 3.0L V6 BlueTEC Diesel Chassis Mercedes-Benz 3500 Horsepower 188 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Queen Torque 325 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 24" x 32" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu Basement Storage 17 cu. ft. TV Info LR LED HD Smart Fire TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Melbourne 24R
Jayco Melbourne Class C diesel motorhome 24R highlights: Full-Wall Slide ... more about Melbourne 24R
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Dover Exterior Color Standard Graphics, Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 35 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-Watt LP Fuel Type Diesel Engine 3.0L V6 BlueTEC Diesel Chassis Mercedes-Benz 3500 Horsepower 188 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Queen Murphy Bed Torque 325 ft-lb Refrigerator Type Gas/Electric Refrigerator Size 8 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 24" x 32" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu TV Info LR LED HD Smart Fire TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
-
Melbourne 24T
Jayco Melbourne Class C diesel motorhome 24T highlights: Rear Twin Beds Bedroom ... more about Melbourne 24T
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 1 Length 25 ft 2 in Ext Width 8 ft Ext Height 11 ft 5 in Int Height 6 ft 11 in Interior Color Dover Exterior Color Standard Graphics, Partial Paint Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 43 gals Grey Water Capacity 31 gals Black Water Capacity 31 gals Tire Size 215/85R16 Furnace BTU 30000 btu Generator Onan 3,600-watt LP Fuel Type Diesel Engine 3.0L V6 BlueTEC Diesel Chassis Mercedes-Benz 3500 Horsepower 188 hp Fuel Capacity 26 gals Wheelbase 170 in Number Of Bunks 1 Available Beds Two Twin Torque 325 ft-lb Refrigerator Size 6 cu ft Convection Cooking Yes Cooktop Burners 2 Shower Size 19" x 28" x 34" Number of Awnings 1 LP Tank Capacity 41 lbs Water Heater Capacity 6 gal Water Heater Type Gas/Electric AC BTU 13500 btu Basement Storage 38 cu. ft. TV Info LR LED HD Smart Fire TV Awning Info 14' Electric w/LED Lights Gross Combined Weight 15250 lbs Shower Type Standard Electrical Service 30 amp Similar Floorplans
Take a Virtual Tour
Melbourne Features:
Standard Features (2023)
Driving Equipment
- Mercedes-Benz® 3500 chassis with 170 in. wheelbase
- GVWR- 11,030 lb.
- GCWR- 15,250 lb.
- V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
- 7-speed automatic transmission
- 220-amp alternator
- E-rated highway tires- 215/85R16
- Front and rear disc, 4-wheel anti-lock brakes
- 5,000 lb. rear hitch receiver with dual connector
- 7-pin plug
- 12V chassis battery
- 26.4 gal. fuel tank
- 5.8 gal. DEF tank
- Driver and passenger airbags
- Power windows and door locks
- Tilt steering wheel
- A/C and cruise control
- Auxiliary start switch
- Privacy curtains for cab area
Exterior Equipment
- Stronghold VBL™ Vacuum-Bond laminated roof, floor and sidewalls
- Bead-foam insulation (R-24 max roof, R-9 max floor, R-8 max walls)
- TPO laminated roof
- Fiberglass running boards
- Fiberglass exterior walls with vinyl graphics
- Electric stabilizer jacks
- Slideout awning(s)
- Entrance door with industry’s largest travel-view window
- Electric-powered entrance step with integrated house battery compartment
- 12V house battery
- Exterior utility center
- Winterization drain system
- Black tank flush
- Outside shower
- 12V demand water pump
- Onan® 3,600-watt LP generator
- Transfer switch with reverse polarity protection
- 30-amp electrical service
- Solar prep
- 12.2 gal. propane tank (41 lb.)
- LP quick-connect hookup
- Flush-mount LED marker lights
- Third brake light
- 4 in. tube bumper with sewer hose storage
Interior Equipment
- 83 in. interior ceiling height with padded vinyl ceiling
- High-intensity, LED ceiling lights
- LED-lit slideout fascia
- Hardwood cabinet doors and drawers
- Ball-bearing drawer guides
- Jayco-exclusive easy-operation legless dinette table (24R)
- U-shaped dinette with stow away pedestal legs (24L)
- 12V USB charging station in dinette area
- 2-point lap safety belts in all designated seating locations
- Pleated blackout shades
- 13,500 BTU A/C
- 30,000 BTU auto-ignition ducted furnace
- 6 gal. gas/electric water heater and water heater bypass
- Powered roof vent in living area with wall switch
- LED HD Smart Fire TV in Living Area
- Prep for satellite dish
- Cable TV hookup with RG-6 coax
- Digital antenna with signal booster
- 8 cu.ft. gas/electric refrigerator
- Suburban 2-burner, drop-in cooktop with flush cover
- Convection microwave
- LED-lit pressed countertops
- Flip-up countertop extension (select models)
- Decorative kitchen backsplash
- Water filtration system
- Shower with decorative surround and skylight
- Stainless-steel bathroom sink
- Toilet with foot flush
- Powered roof vent in bathroom with wall switch
- Queen-sized bed with bedspread (24L)
- (2) Twin-sized beds (24T)
- USB port in bedroom
- Bedroom TV prep
- Large wardrobes
- Overhead bunk with 750 lb. capacity and safety net
- Smoke alarm
- Carbon monoxide detector
Customer Value Package (Mandatory)
- One-piece, seamless, fiberglass front cap
- Frameless windows
- Heated holding tanks (12V pads)
- Heated, remote-controlled, side view mirrors
- Electric patio awning with LED lights
- Backup and side-view camera
- Keyless cab entry
- Sony® infotainment center with Apple CarPlay® and Android Auto™
- Swivel driver and passenger seats with boosters
Options
- Front entertainment center with 32 in. LED TV
- 3,200-watt diesel generator
- Folding windshield sun shade
- 4-point hydraulic leveling jacks
- Theater seating ILO dinette (24L, 24R)
- 190W solar panel with dual controller and second house battery
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
